Atmon FL Air pollution analyser
- Standalone, mobile measuring system for gaseous and particulate air pollutants (without measuring modules)

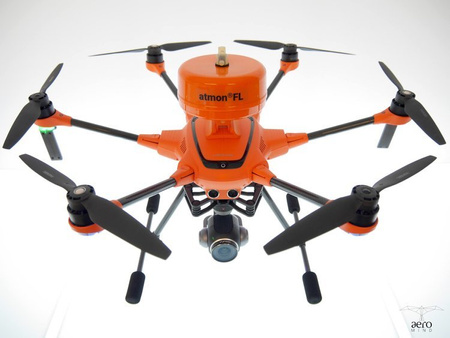

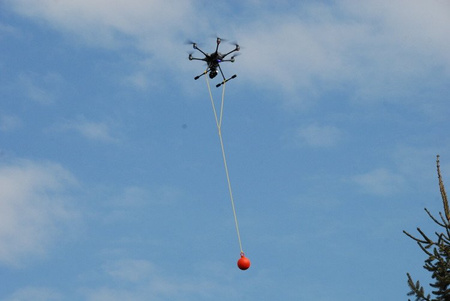

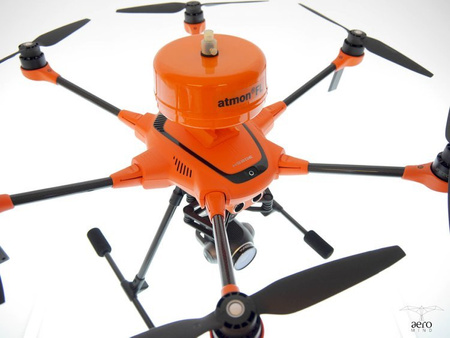

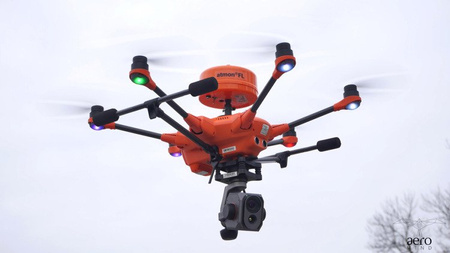

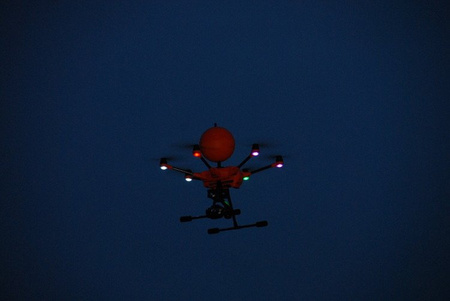

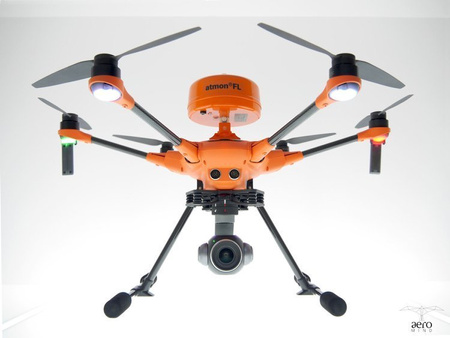

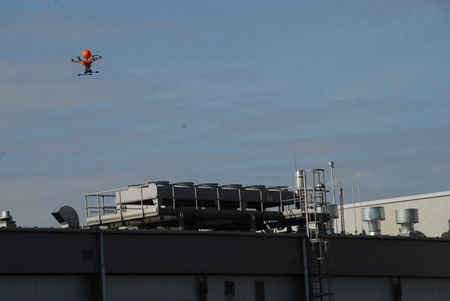

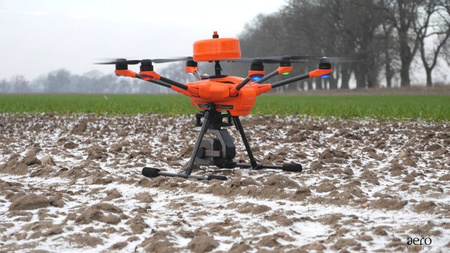

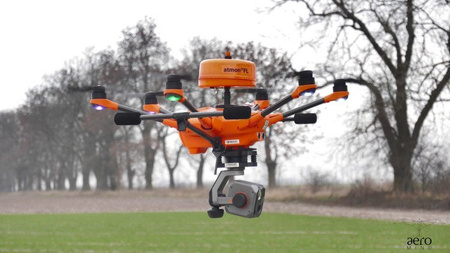

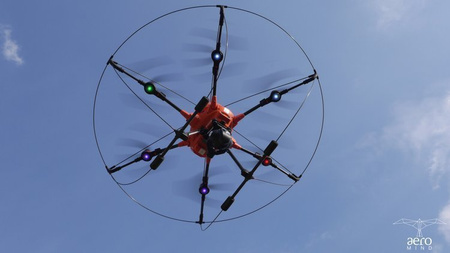

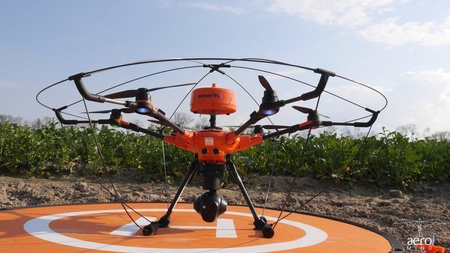

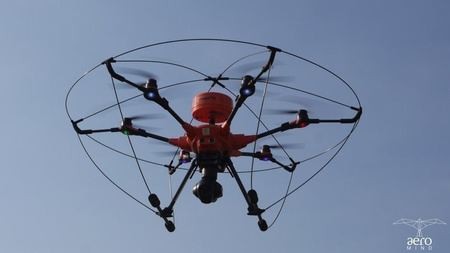

ATMON FL is an independent mobile measurement system for gaseous and powdery air pollutants in forced mode. It is designed to be carried by unmanned aerial vehicles BSP (UAV - Drones), dedicated to installation on Yuneec H520 drone.
Options for individual configuration of ATMON FL with any measured substances
| ATMON-FL Air pollution analyzer (without media measurement modules) |
| ATM-FL-AQ indicator of general air quality AQ: 0-100 ppm; accuracy: 0,05 ppm; resolution: 0,01 ppm |
| ATM-FL-C2H6O C2H6O ethanol metering module: 0-500 ppm; accuracy: 0,3 ppm; resolution: 0,01 ppm |
| ATM-FL-Cl2 Chlorine measurement module Cl2: 0-5 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
| ATM-FL-CO Carbon monoxide measurement module CO: 0-1000 ppm; accuracy: 0,5 ppm; resolution: 0,1 ppm |
| ATM-FL-CO2 Carbon dioxide measuring module CO2: 0-5000 ppm; accuracy: 50 ppm; resolution: 1 ppm |
| ATM-FL-H2S Hydrogen sulfide measurement module H2S: 0-50 ppm; accuracy: 0,1 ppm; resolution: 0,01 ppm |
| ATM-FL-HCHO Formaldehyde measurement module HCHO: 0-5 ppm; accuracy: 0,1 ppm; resolution: 0,01 ppm |
| ATM-FL-HCL Hydrogen chloride measuring module HCL: 0-20 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
| ATM-FL-HCN Hydrogen cyanide measuring module HCN: 0-100 ppm; accuracy: 0,1 ppm; resolution: 0,01 ppm |
| ATM-FL-LZO Measurement module of volatile organic compounds VOC: 0-40 ppm; accuracy: 0,04 ppm; resolution: 0,01 ppm |
| ATM-FL-NH3 Ammonia measuring module NH3: 0-100 ppm; accuracy: 1 ppm; resolution: 0,01 ppm |
| ATM-FL-NO2 Nitrogen dioxide measurement module NO2: 0-5 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
|
ATM-FL-NO Nitric oxide measurement module NO: 0-100 ppm; accuracy: 0,1 ppm; resolution: 0,01 ppm |
| ATM-FL-O3 Ozone measurement module O3: 0-2 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
| ATM-FL-PM Dust measurement module PM10 / PM2.5: 0-999 ug/m3; accuracy: 15 ug/m3; resolution: 1 ug/m3 |
| ATM-FL-RI Irritating substances in the respiratory tract RI: 0-20 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
| ATM-FL-SO2 Sulfur dioxide measurement module SO2: 0-20 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
Set include:
- air pollution analyser (without measuring modules for gas and dust media)
- the set does not include a drone and camera shown in the pictures
Specification
| POWER SUPPLY | Lithium-Polymer battery, 1S | ||
| FULL CHARGING TIME | ~2,5h | ||
| SAMPLE COLLECTION | Forced, electric | ||
| REACTION TIME | < 30 s | ||
| ATMON BATTERY LIFE H520 UAV |
< 5 h on single charge |
||
| ATMON FLIGHT TIME | ~ 20 min | ||
| Max range | 1600 m | ||
|
20% – 95% RH -20°C - + 50°C 800 mbar – 1150 mbar |
||
| DIMENSIONS | Ø of enclosure max 125 mm OVERALL DEVICE HEIGHT max 115 mm |
||
| WEIGHT | < 300 g | ||
| AERODYNAMI ECNCLOSURE | HIPS – high impact polystyrene |
