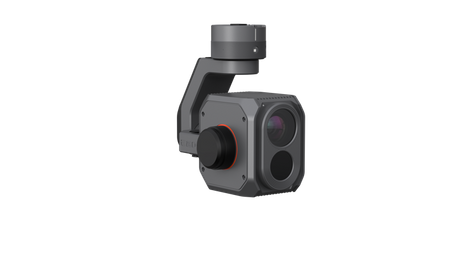

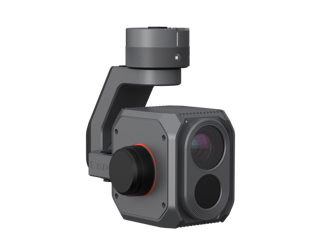

E20Tvx Radiometric Camera (for drones Yuneec H520E i H520E RTK)

Our new E20Tvx NETD camera for the H520E-OFDM comes in 640 x 512 resolution and with the ability to capture temperature data for quantitative assessment. The residual-light RGB camera has a 20x higher sensitivity than the human eye, and captures high- quality imagery, even in very low-light conditions. It is small, lightweight and thanks to its high sensivity, it is a reliable tool that clearly recognise target objects in detail.

Fully radiometric

Thanks to radiometric technology, the E20Tvx is able to measure the temperature of an area, by interpreting the intensity of an infrared signal reaching the camera. It collects the data for every image pixel, which can be then easily uploaded into a standard software for further and accurate analyisis and reports.

Key Features:

/ High sensitivity for clear and detailed target recognition.

/ Detailed and precise temperature measurement for every pixel.

/ Color palettes adjustable to task requirements.

/ Adjustable Gain Modes to change the measured temperature range.

/ Post-flight accurate analusis with quantifiable data.

/ Suitable for tasks related to Inspection (buildings, solar panels and powerlines), Serch and Rescue, Firefighting ald Law enforcement.

Dual Lens: IR & Low Light RGB

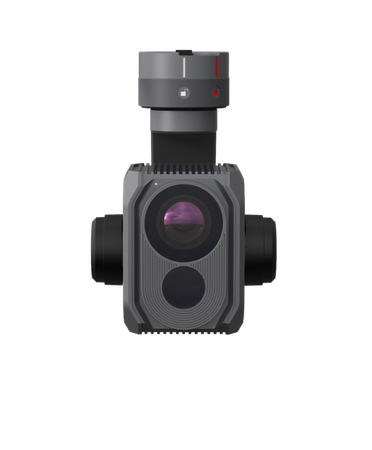

Thw 1080p low light camera coupled with the terminal imaging camera combine to capture IR and RGB for an overlay image that is pixel-accurate. Large RGB sensor detects better detail in the dark than the human eye, making it ideal for surveillance.

Simultaneous Real-time View

Both images are simultaneously streamed live to the ST16E ground control station and can be separated and viewed as picture-in-picture or as an overlay. IR and RGB are recorded simultaneously and are time-code correct for playback and edit. Temperature detection scale can be adjusted for focus on relevant areas.

Hot-Swappable Payload

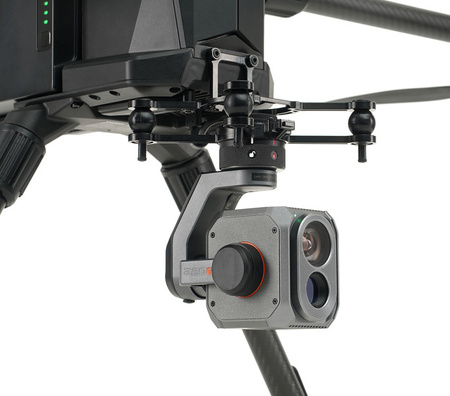

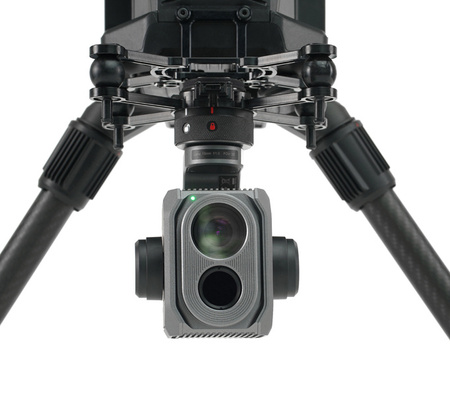

All Yuneec commercial camera systems are hotswappable which minimizes down time and improves productivity. The E20Tvx camera-gimbal combination may be swapped without power cycling the airframe. The quick release and lock mechanism of the gimbal and airframe mounting system enables fast and efficient exchange of cameras.

Serch & Rescue

The E20Tvx is ideal for use in search and rescue missions due to its dual camera capability. The low light video camera can be used in daylight search and can be extended for use in pre-dawn/post-dusk and early morning/late afternoon times when light is low or shadows are long. The thermal camera can be deployed day or night for easier detection of people or animals. And when a hot spot is detected, the E20Tvx temperature detection scale can be adjusted for focus on relevant search areas.

Building, Powerline and Solar Inspection

Property owners and utility operators will appreciate the flexibility of the dual camera system. The thermal camera on the E20Tvx can be used to identify heating or cooling loss in a structure. It can also be used to detect and locate malfunctioning solar panels on
residential or commercial buildings as well as in solar farms, saving time and money as well as improving the safety of asset inspection.

Tech Specs

Weight 358g

Gimbal

Angular Vibration Range 0.02°
Controllable Range TILT: -110° - 30°
PAN: ± 165°
Max Angular Velocity TILT:30°/s PAN:120°/s
Operating Temperature -10°C - 50°C

Infrared Part

Diagonal Fov 41.4°
Fov(H x V, ±5%) 33° x 26.6°
Sensitivity <50mk
Pixel Pitch 12μm
Infrared Wavelength Range 8-14μm
Frequency Full Frame Rate: 25Hz
Photo Format JPEG
Video Format MP4
Temperature Compensation Auto
Resolution 640×512
Temperature Measurement Range High Gain -20°-150°
Low Gain 100°-500°

Optical Part

Sensor 1/2.8" 2M
Aperture F2.8
Equivalent Focal Length 23mm
Diagonal Fov 89.6°
ISO Range 100-3200
Shutter 1/30-1/8000s
Video Resolution 1920*1080p 60fps
Photo Format JPEG
Video Format MP4

Item No. YUNE20Tvx33EU
