ACO Streamer

ACOStreamer
Mobile streaming without delays

Mobile streaming without delays

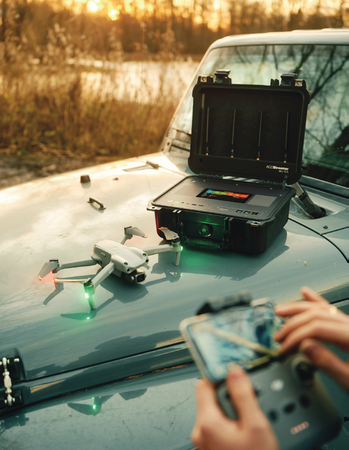

The ACO Streamer 4K LTEA allows for reliable, encrypted image transmission from any location. Designed with drone operations in mind, the ACO Streamer facilitates the exchange of information between units conducting field activities and operation coordinators at the command post.

Thoughtful design and advanced software enable real-time viewing of the drone camera image. The operating time on the built-in battery allows for approximately 8 standard UAV missions.

Key features of the system:

• Designed for field operations
• Video transmission latency below 1 second
• Built-in LTEA modems
• AES-256 encryption
• Patented link aggregation technology
• Gigabit Ethernet WAN port
• Point-to-point VPN

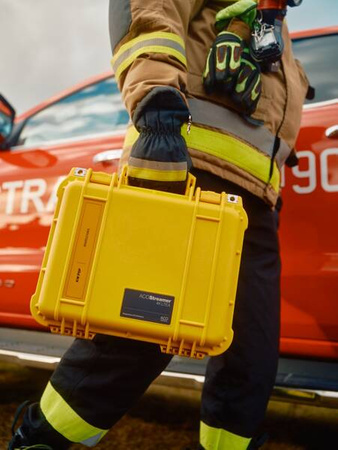

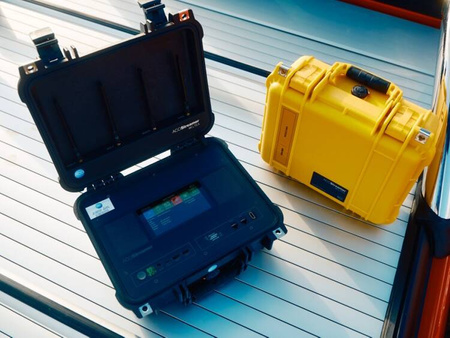

• Durable IP67 PeliCase housing

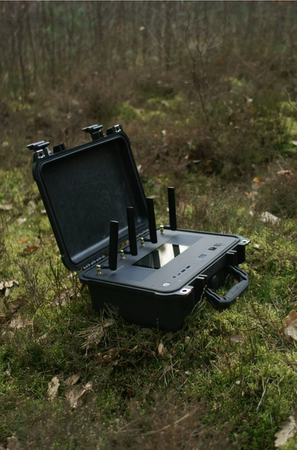

• SMA connectors for external LTEA antennas

SYSTEM FEATURES

Real-time operation
ACO Streamer devices allow for the transmission of video streams from any video source to a remote video server. The image is displayed on the user’s device with a delay of less than half a second (under typical GSM network conditions).

Compatibility with multiple systems
The ACO Streamer system can handle any device with a video output port. This allows streaming from a variety of drone models with video output on the controller, as well as from other devices like notebooks and cameras.

Security and reliability of transmission
Data security is one of the most important tasks accomplished by the ACO Streamer, which features a built-in processor encrypting the streamed image. Data packets are secured with several encryption keys and sent along different routes, making it impossible for third parties to monitor the transmission.

The two built-in LTEA modems can be supported by external transmission systems. Additional links increase the bandwidth and stability of the transmission, even in the most difficult locations.

Remote access for observers
The system allows remote observers with appropriate permissions to view the image. Defined VPN concentrator lists and firewall rules allow transmission to a remote video server.

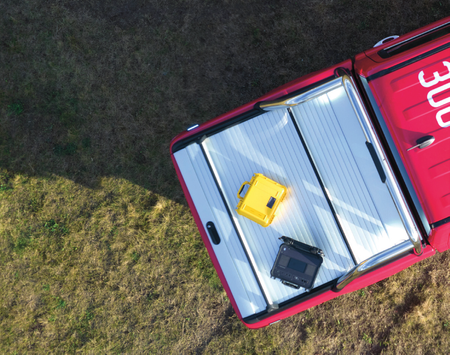

Created for fieldwork
The ACO Streamer is designed for difficult conditions
in any location.
Wireless LTE-Advanced connectivity, built-in battery, and durable housing ensure mobility and reliable operation even on the move.

Remote user support
The ACO Streamer user can count on remote support from experts while
using the system. The system software allows remote access to the device from the headquarters, enabling remote configuration.

ACO Stream Viewer Application
The transmitted image is displayed in the dedicated web application ACO Stream
Viewer. Authorized individuals, after logging into the server, can select active video streams and watch them in one of several window layouts (2x2, 4x4, 7x1, etc.). The application allows simultaneous viewing of 16 streams coming from different sources (drones, cameras, computers, etc.).

Wireless connectivity
The solution uses a built-in router with patented WAN link aggregation technology that combines the bandwidth of several GSM networks – ensuring a fast and stable connection to the video server. In difficult conditions, connection bandwidth can be increased by connecting an external LTEA/5G router, provided by
ACO Solutions.

The set includes:

• A built-in video streamer accepting HD, FHD, 4K signal resolution, transmitting a Full HD resolution signal over an IP link.


• Autonomous power supply – a battery with a capacity of 50,000 mAh, 90W, allowing the entire system to operate for over 2 hours without charging. The system can also work while the battery is charging.


• GPS receiver with a positioning transmission system to the central remote management system and to any other mapping system, allowing for the presentation on the map of the UAV operation site.


• Image presentation system – ACO Stream. Software created to present video streams from up to 16 sources simultaneously. The image is available to any authorized user through any device with an internet browser.
