Yuneec E90 1" Sensor Camera
Yuneec E90 1" Sensor Camera
Yuneec E90 1" Sensor Camera
Yuneec E90 1" Sensor Camera
Yuneec E90 1" Sensor Camera
Yuneec E90 1" Sensor Camera
Yuneec E90 1" Sensor Camera
Yuneec E90 1" Sensor Camera
Yuneec E90 1" Sensor Camera

Yuneec E90 1" Sensor Camera

  • Ultra High Definition & Digital Zoom
Regular price net incl. VAT / szt.
1 193,16 €
net / szt.
1 467,59 €
incl. VAT / szt.
You can also buy using:
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

Save by buying more

Yuneec H520 with E90 camera

Yuneec H520 with E90 camera

2 361,47 € net/1szt.2 904,60 € incl. VAT/1szt.
See the set
Brand
Symbol
YUNE90EU
Producer code
6970298655920
Warranty

E90

1" Sensor Camera




Ultra High Definition & Digital Zoom

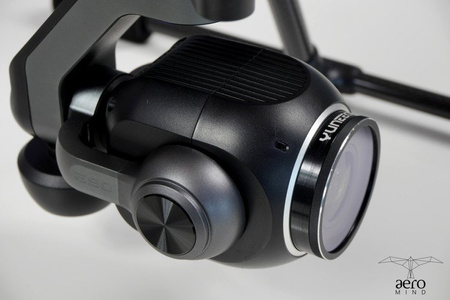

The E90 camera is a wide-angle, high resolution, gimbal stabilized imaging system perfectly suited for use in applications that require high quality photo and video. The E90 utilizes a 20 MP 1-inch sensor and the latest H2 high speed image processing chip. The digital zoom feature allows the user to digitally zoom in and out with two finger gesture. Zoom factor is up to 8x, whereas the view on the ST16S is lossless up to 4x.







Hot-swap capable

The E90 is hot-swap capable which minimizes down time and improves productivity. The E90 camera-gimbal combination may be swapped for an E50 or CGOET camera-gimbal combo without power cycling the airframe. The quick release and lock mechanism of the gimbal and airframe mounting system enables fast and efficient exchange of cameras.



1 Inch Sensor

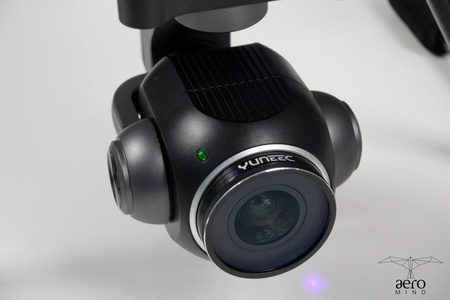

The E90 utilizes a high aperture 1 inch CMOS imager that is capable of capturing still images with 20 megapixel resolution. The sensor provides exceptional dynamic range and improved signal-to-noise ratio. The E90's 23 mm lens equivalent provides wide angle view via an all glass lens system with low distortion and minimal lens dispersion. The E90 comes with a lens adapter ring threaded to fit 40.5mm standard ND filters for flexibility and convenience.







360° rotation

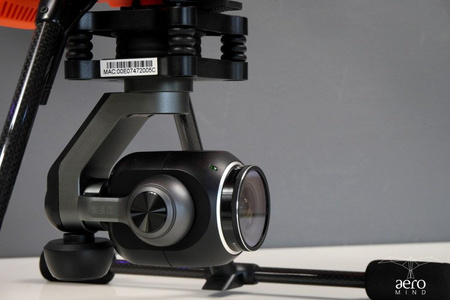

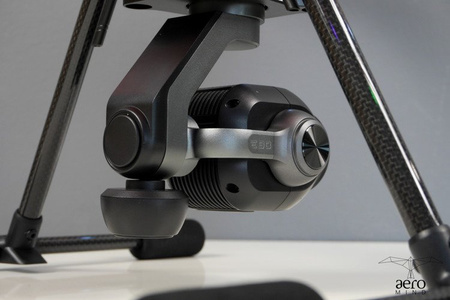

A 3-axis stabilized gimbal with high precision provides a steady platform for the E90 camera. With a precision of +/- 0.02°, E90 shots are rock-solid whether loitering or flying full throttle. The E90 gimbal is capable of unlimited 360 yaw axis rotation. This unique feature, when combined with the H520 retractable landing gear, provides the operator with full 360 unobstructed camera view and the ability to continuously pan the camera without yawing the airframe.



Perfect team

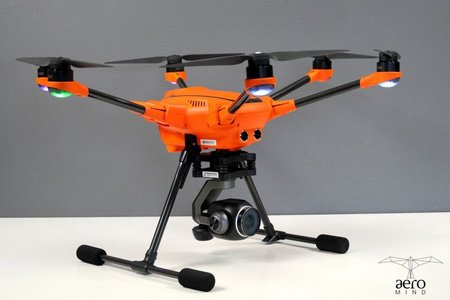

The H520 is the perfect partner for the E90. The hexacopter is appropriate wherever long flight times and tried-and-tested technology are required in an all-in-one package. The six rotor safety as well as the waypoint technology and a lot of other features make the H520 and the E90 camera ideal for both, industrial and private applications.







Highly automated, detailed imagery

User will appreciate the dramatic aerial shots afforded by the E90’s high frame rate and accurate color. In addition, the E90 is ideal for commercial applications such as accident recreation, search and rescue operations, and for 3D mapping/modeling.



At a glance

  • 20 megapixel resolution
  • 1" CMOS sensor
  • 4K resolution at 60 frames per second
  • Digital live image transmission with 720p HD
  • Digital zoom up to 8x
  • Endless 360° rotation of the gimbal for perfect image stabilization
  • Full control of the camera via ST16S transmitter
  • Compatible with H520 hexacopter




Example of use




Click to download original photos.





Technical specifications



YUNE90EU

Camera
WEIGHT 350 g
FOCAL LENGTH 23 mm
COLOR SENSITIVITY RGB
COMPRESSION BIT RATE 100Mbps
COMPRESSION TYPE AVC/HEVC
DIGITAL NOISE REDUCTION 2D Filter
EFFECTIVE PIXELS 20 Megapixels
ELEMENTS 7G2P
VIEW FIELD DFOV 91
FRAME RATE 24/25/30/48/50/60/120
FSTOP RANGE F2.8
GIMBAL AXES 3
ANGULAR VIBRATION RANGE ± 0.02°
MAXIMUM CONTROL RANGE TILT: -90° - 15° / PAN: 360° limitless
MAXIMUM CONTROL SPEED TILT: 30°/s / PAN: 120°/s
ISO RANGE 100 - 6400
VIDEO RESOLUTION 4K 60FPS
MTF 104lp/mm / CENTER: 0.6 / CORNER: 0.4
SENSOR SIZE 1 Inch CMOS
SHUTTER SPEED 1/8000s - 4s
SHUTTER TYPE rolling
SD CARD Class 10 u3 min. 90 Mbit/s
SNR ISO100, SNR 36db
STORAGE TEMPERATURE -10°C - 50°C
OPERATING TEMPERATURE -10°C - 40°C
COMPATIBLE COPTER H520
