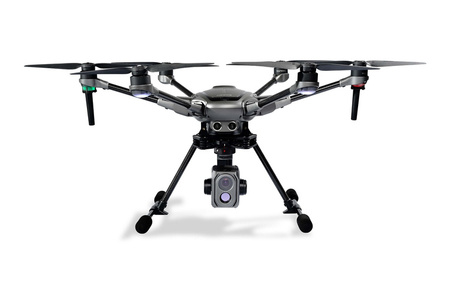

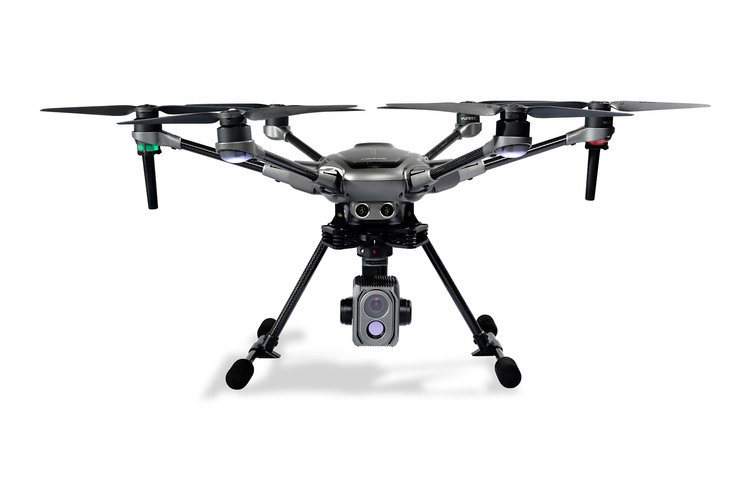

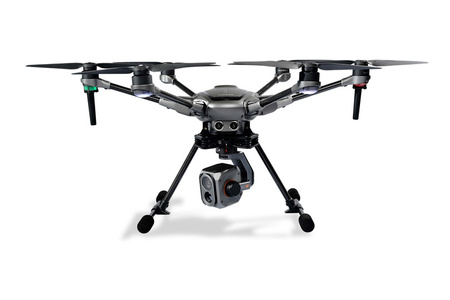

ETX-Lite (256x192/30Hz) For H520E/H850

  • ETX-Lite (256x192/30Hz) For H520E/H850
  • ETX-Lite (256x192/30Hz) For H520E/H850
  • ETX-Lite (256x192/30Hz) For H520E/H850
Warranty: 12 miesięcy
2 274,19 €
/ szt.
Gross price. Shipping costs should be added to the price.

It is cheaper in a set!

Price of a product sold separately:Set price
Combo H520E+ ETX-LiteCombo H520E+ ETX-Lite4961.13€4558.16€You save (8.12%)

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability
Product information "ETX-Lite (256x192/30Hz) For H520E/H850"


The  camera for the H520E & H850 comes in 256x192 resolution and with the ability to
capture temperature data for quantitative assessment. The residual-light RGB camera has a 20x higher sensitivity
than the human eye and captures high-quality imagery, even in very low-light conditions. It is small, lightweight and thanks
to its high sensitivity; it is a reliable tool that clearly recognises target objects in detail.

Key Features:

  • High sensitivity for clear and detailed target recognition.
  • Detailed and precise temperature measurement for every pixel.
  • Color palettes adjustable to task requirements.
  • Adjustable Gain Modes to change the measured tempreature range.
  • Post-flight accurate analysis with quantifiable data.
  • Suitable for tasks related to Inspection (buildings, solar panels and powerlines), Search and Rescue, Firefighting and Law enforcement.
  • Camera is compatible with H520E & H850


Parameters ETX-LITE
General Gimbal mount Yuneec X connector
Stable system Three axes (YAW, Pitch, Roll)
Angular Vibration Range ±0.02°
Controllable Range -110°to 30°
Max Angular Velocity Pitch:30°/sYaw:120°/s
Dimensions 121*81*114mm
Weight 329g
Operating Temperature 10 - 40
Waterproof -
Optical camera Sensor 1/2.8"   Effective Pixels:2MP
Lens DFOV 84° F2.8, 23mm format equivalent
Photo Resolutions 1920*1080
Video Resolutions 1920*1080p 30fps
Photo Formats JPEG
Video Formats MP4
Exposure Mode Program AE Mode, Manual Exposure Mode
Exposure Compensation  ±2.0
Metering Mode  Center-weighted
Electronic Shutter Speed 1/30-1/8000s
White Balance Auto, Incandescent, Sunrise,
Sunset, Sunny, Cloudy, Fluorescent
ISO Range 100-3200
Digital Zoom -
Infrared camera Diagonal Fov 71.0°
Fov(H x V,±5% 3.2mm51.3°×39.6°
Sensitivity 65mK@F1.0@25
Pixel Pitch 12μm
Infrared Wavelength Range 8-14μm
Frequency Full Frame Rate30Hz
Photo Formats JPEG
Video Format MP4
Temperature Compensation Auto
Resolution 256x192
Temperature Measurement Range High Gain -20-150/Low Gain 100-550
Digital Zoom -



Comparison with other Yuneec thermal imaging cameras
