Combo H520E+ ETX-Lite

COMBO FOR PROFESSIONAL USE

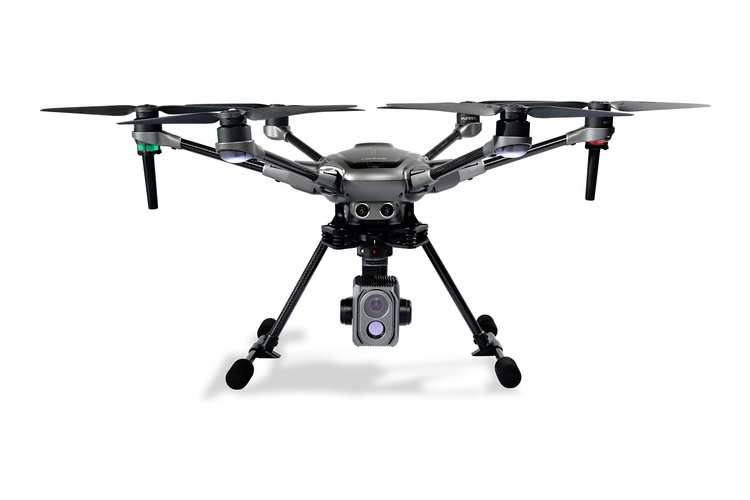

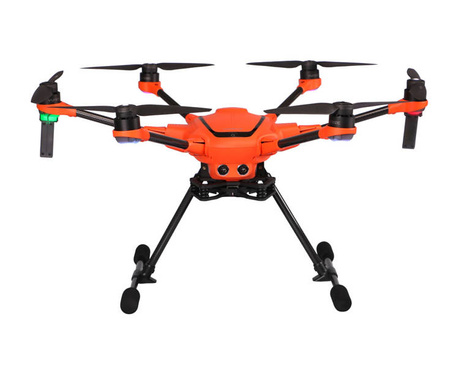

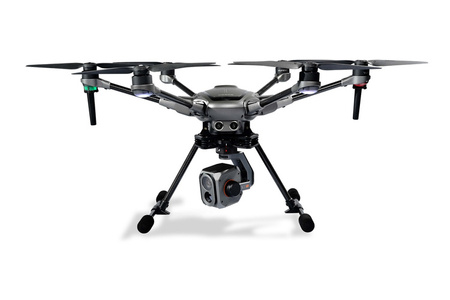

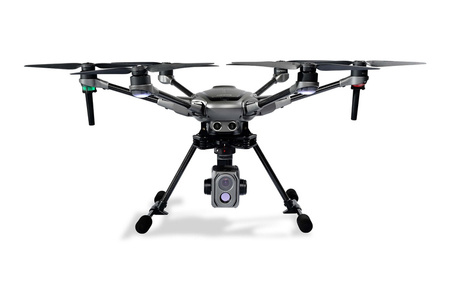

The H520E-OFDM Hexacopter was specially developed for commercial drone applications and provides SAR ground teams, inspectors, police, fire brigades and surveying teams with a versatile tool. The H520E-OFDM is a robust, powerful and flexible UAV platform that can be ideally adapted to individual requirements and thus enables a variety of industry-specific applications. Long flight times and high-quality camera systems with embedded GPS data allow an area to be recorded quickly and precisely, while the interference-free precision compass enables flying even in previously difficult-to-fly environments. In addition to the performance and flexibility, great emphasis was placed on the drone's flight and data security when developing the platform.

KEY FEATURES

• New Powerful flight control processor
• New battery connector with fail safe design
• New long range OFDM module
• Designed for professional, commercial and governmental requirements
• High-precision, low-interference compass
• New 30 pin payload interface
• No data transfer to external servers
• Stable and safe 6 rotor system
• Energy efficient and quiet operation
• ST16E with integrated 7” touch display, voice output and comprehensive DataPilot™ software
• HDMI signal directly from the ST16E to output the drone’s live image onto larger monitors
• Mission planning on the computer or ST16E

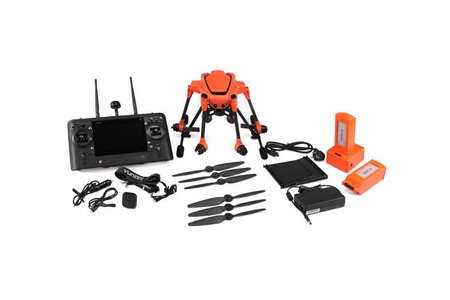

Box Content:

• H520E Hexacopter with OFDM module
• ETX-Lite Camera
• 2 Batteries 4S-6200mAh
• EU Charger
• 12v Charging lead
• ST16E Transmitter (Touchscreen)
• 1 ST16E battery
• USB charging cable
• Sun Shade Screen cover
• Neck strap
• SD Card
• User Manual

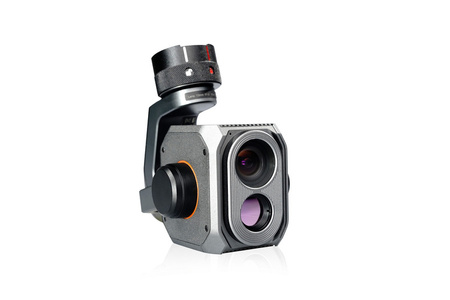

THERMAL IMAGING SOLUTION FOR H520E&H850

The  camera for the H520E & H850 comes in 256x192 resolution and with the ability to
capture temperature data for quantitative assessment. The residual-light RGB camera has a 20x higher sensitivity
than the human eye and captures high-quality imagery, even in very low-light conditions. It is small, lightweight and thanks
to its high sensitivity; it is a reliable tool that clearly recognises target objects in detail.

 Key Features:

• High sensitivity for clear and detailed target recognition.
• Detailed and precise temperature measurement for every pixel.
• Color palettes adjustable to task requirements.
• Adjustable Gain Modes to change the measured tempreature range.
• Post-flight accurate analysis with quantifiable data.
• Suitable for tasks related to Inspection (buildings, solar panels and powerlines), Search and Rescue, Firefighting and Law enforcement.
• Camera is compatible with H520E & H850

 ETX-Lite
